Samba 4

Samba 4 - Linux Integration

Guys, this is 201x. We don't have sysadmins any more. Unless you're a hobbyist who is curious about the past, use something up to date instead. There's loads to choose from. We went Google. But there's also Amazon, iCloud and maybe IBM have something...

Introducing s4bind: an alternative to Winbind. Simple and lightweight single sign on Active Directory for Linux and Windows. Details HERE

To provide a choice. Linux or Windows workstation. Same login. Same files. Different price.

There's no doubt about it, introducing Linux boosts productivity. When it comes to workstations, Linux desktops have a distinct advantage. A customised GUI distinguishes your company from the predictable monotony of your competitors. More, you can have it now. Relieve your enterprise of the dated looking Microsoft and impossible to configure Mac interfaces. Give your employees something which looks up to date, is easy on the eye, simple to work with and which has your company ethos written deep into its underlying structure. Where would you rather work?
Ready for work. One of our Linux Clients
Firmly back to the 90's with Windows
What does all this do?
Implement Active Directory, without the burden of Microsoft licencing. We'll create an example user called steve6, a group called suseusers and a shared folder for all members of suseusers called dropbox. Samba4 will be the boss. On the Linux side, we bypass winbind and cifs in favour of the lightening fast and all new nss-ldapd with an nfs4 fileserver
This is the quickstart version. If it's 3 am and Samba4 is still complaining about DNS, go here, You did install Samba4 according to the Samba4 how-to didn't you?

The Hard and Soft of it
Samba 4 PDC and NFS server: openSUSE 12.1
 IP, fqdn, hostname hh3
Linux Client: openSUSE 12.1
 dhcp, hostname hh6
Windows Client Windows 7 Ultimate
 dhcp, hostname steve-pc
The test domain: CACTUS
Samba 4 provision

/usr/local/samba/sbin/provision --domain=CACTUS  --adminpass=Myp@s1Wd --server-role=dc

Edit /usr/local/samba/etc/smb.conf

 server role = domain controller
 workgroup = CACTUS
 realm = site
 netbios name = HH3
 passdb backend = samba4
 template shell = /bin/bash
 path = /usr/local/samba/var/locks/sysvol/
 read only = No
 path = /usr/local/samba/var/locks/sysvol
 read only = No
 path = /home/CACTUS
 read only = No
 path = /home/CACTUS/profiles/
 read only = No
 path = /home/CACTUS/dropbox
 read only = No
 create mask = 0770

Set your path e.g. in /etc/environment

Start Samba 4:
samba -i -d 3
Grab another root shell.

Turn off nscd:
$rcnscd stop

Create some users, groups and folders:
$samba-tool user add nslcd-service
$samba-tool user setexpiry nslcd-service --noexpiry
$samba-tool user add nfs-user
$samba-tool user setexpiry nfs-user --noexpiry
$groupadd nslcd-user
$useradd -s /bin/false -d /var/lib/nobody -g nslcd-user nslcd-user
$mkdir -p /home/CACTUS/profiles
$chmod 1777 /home/CACTUS/profiles

Install the package nss_pam_ldapd and then:
$chown nslcd-user:nslcd-user /etc/nslcd.conf

nslcd takes all the guesswork out of AD mapping. I only had to change 3 maps:
Edit /etc/nslcd.conf
uid nslcd-user
gid nslcd-user
uri ldap://
base dc=hh3,dc=site
map    passwd uid              samAccountName
map    passwd homeDirectory    unixHomeDirectory
map    group  uniqueMember     member
sasl_mech GSSAPI
sasl_realm HH3.SITE
krb5_ccname /tmp/nslcd.tkt

Make it readable by the nslcd-user:
chown nslcd-user:nslcd-user /etc/nslcd.conf

We get the mappings from ldap, so we need to tell nss in /etc/nsswitch.conf
passwd:         files ldap
group:          files ldap

Extract the key for nslcd-service:
$samba-tool domain exportkeytab /etc/nslcd.keytab --principal=nslcd-service

Grab k5start from here. Copy it to /usr/local/sbin and chmod + x it.
Start it:
$k5start -v -f /etc/nslcd.keytab -U -o nslcd-user -K 360 -k /tmp/nslcd.tkt &

Start nslcd:
$rcnslcd start

Next, we'll make s4 able to talk to Linux users and groups. This is a very basic mapping. For a full list of Linux user, group and start up scripts for Samba4, please see here.

We create and posix-ify a group called suseusers. Copy and paste this file as s4group and chmod + x it:
Copy from here --->

echo "Creating s4 posix group "$1
samba-tool group add $1
strgid=$(wbinfo --group-info=$1)
gid=$(echo $strgid | cut -d ":" -f 3)
echo "dn: cn=$1,cn=Users,dc=hh3,dc=sit
changetype: modify
objectclass: posixGroup
add: gidnumber
gidnumber: $gid" > /tmp/$1
ldapmodify -h -D cn=Administrator,cn=Users,dc=hh3,dc=site -f /tmp/$1 -Y GSSAPI
rm /tmp/$1
echo $1 "posix-ified"
<--- to here

Then, tickets please:
kinit Administrator
and create the group:
./s4group suseusers

Now we make the dropbox share and set permissions for our suseusers group:
mkdir -m 1770 /home/CACTUS/dropbox
chown root:suseusers /home/CACTUS/dropbox
chmod g+s /home/CACTUS/dropbox

setfacl -d -m g::rw /home/CACTUS/dropbox
This sets files created in the dropbox folder editable by everyone in suseusers. If you want directories created to be group rw too:
setfacl -d -Rm g::rwx /home/CACTUS/dropbox
For full details of the share please go here.

Now we'll create a user steve6, posix-ify him and put him in the suseusers group.
Here is a script to do that for us. Similar idea to the group script. We'll call this one s4user:
Copy from here -->
echo "Creating s4 posix user "$1
echo "Pls enter pwd for "$1
samba-tool user add $1
sleep 2
#get the uid
struid=$(wbinfo -i $1)
uid=$(echo $struid | cut -d ":" -f 3)
#get the gid
strgid=$(wbinfo --group-info=$2)
gid=$(echo $strgid | cut -d ":" -f 3)
#get the group from the sid
strsid=$(wbinfo --gid-to-sid=$gid)
primarygid=$(echo $strsid | cut -d "-" -f 8)
strwg=$(echo $struid | cut -d "\\" -f 1)
#add the posix attributes to the user
echo "dn: CN=$1,CN=Users,DC=hh3,DC=site
changetype: modify
add: objectclass
objectclass: posixaccount
add: uidnumber
uidnumber: $uid
add: gidnumber
gidnumber: $gid
unixhomedirectory: /home/$strwg/$1
add: loginshell
loginshell: /bin/bash" > /tmp/$1
ldbmodify --url=/usr/local/samba/private/sam.ldb -b dc=hh3,dc=site /tmp/$1
samba-tool group addmembers $2 $1
#set the user to the posix group
echo "dn: CN=$1,CN=Users,DC=hh3,DC=site
changetype: modify
replace: primarygroupid
primarygroupid: $primarygid" > /tmp/$1
echo "sleeping. . ."
sleep 5
ldbmodify --url=/usr/local/samba/private/sam.ldb -b dc=hh3,dc=site /tmp/$1
mkdir /home/$strwg/$1
chown -R $1:$2 /home/$strwg/$1
rm /tmp/$1
hostname=$(hostname -s)
echo "dn: CN=$1,CN=Users,DC=hh3,DC=site
changetype: modify
add: profilePath
profilePath: \\\\$hostname\\profiles\\$1
add: homeDrive
homeDrive: Z:
add: homeDirectory
homeDirectory: \\\\$hostname\\home\\$1" > /tmp/$1
echo "sleeping. . ."
sleep 5
ldbmodify --url=/usr/local/samba/private/sam.ldb -b dc=hh3,dc=site /tmp/$1
echo "New user: "  $1 "POSIX-ified as follows:"
echo "uid " $uid
echo "gid " $gid
echo "primaryGroupID " $primarygid " :$2"
echo "getent passwd $1"
echo $(getent passwd $1)
echo "sid " $(wbinfo --gid-to-sid=$gid)
ldbsearch --url=$db cn=$1 | grep \\\\$hostname
ldbsearch --url=$db cn=$1 | grep homeDrive
rm /tmp/$1
<-- to here and chmod +x it.

Don't know why we can't do the ldbmodify in a single step. I tried, but no go. Some error about ERR: (Unwilling to perform) LDAP error 53. Anyway, it works OK like this.

Then create steve6:
./s4user steve6 suseusers

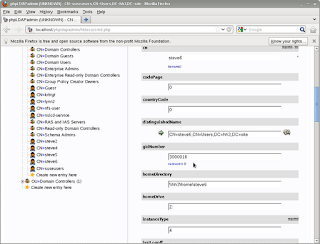

Of course, you could do the user and group stuff with phpldapadmin too:
The point and click method, 1
The point and click method, 2
But well, it was getting dark, and I wanted to get home in time for the football.

Next we configure nfs4 by installing the nfs server. Use Yast to install the nfs-server. Create a service principal for nfs and extract the key:
$samba-tool spn add nfs/ nfs-user
$samba-tool domain exportkeytab /etc/krb5.keytab --principal=nfs/
gss expects to find some sort of machine identifier in the keytab, so we also need:
$samba-tool domain exportkeytab /etc/krb5.keytab --principal=HH3$

The novelty of the pseudo-root and fsid=0 wore off very quickly, so /etc/exports is simply  (mind the line break, this is all one line):

Use Yast to do the nfs4 sysconfig stuff. This is where openSUSE really saves you time. You just check the buttons here. Choose either:
If you're happy with the limitations of nfs4 acl's
Yast NFS module for  kerberized nfs4
You can leave the nfs4 configuration in place (recommended). . .
If you want your acl's to work as you expect
Yast NFS module for Kerberized nfs3
Lastly, we monitor what it's doing:
rpc.idmapd -fvvv

Linux Client
Warning: do not edit /etc/resolv.conf. Use Yast Network Settings to point at and start the domain search at
Set your hostname to hh6, not hh3
and add:   hh3   hh6
to /etc/hosts
Go no further until you can ping the server on both name and IP, and hostname -f gives
Configure Kerberos. Guess what I used:
More Yast time saving

It will pull in the other Kerberos stuff you need too. The Samba4 provision should have created a krb5.con for you:

default_realm = HH3.SITE
dns_lookup_realm = false
dns_lookup_kdc = true
You can use the one that Yast created or the Samba4 one in case of problem later on.

An easy way to get the rest of Kerberos is to join the domain. Install samba-client and create /etc/samba/smb.conf as follows:
workgroup = CACTUS
realm = HH3.SITE
security = ADS

Now join the domain (fingers crossed):
$net ads join -U Administrator

Now add the line:
kerberos method = system keytab
to smb.conf and create the host and machine keys for the client:
$net ads keytab create -U Administrator

We now bypass winbind by installing the package nss_pam_ldapd

Use a USB pendtive, 5 1/4" floppy disk or punched cards to transfer the following files and applications:
from the server to the respective locations on the client.
Start k5start:
$k5start -f /etc/nslcd.keytab -U -o nslcd-user -K 360 -k /tmp/nslcd.tkt &

Edit /etc/idmapd.conf

Start nslcd:
rcnslcd start

We need to get our files from the server. Set it up as nfs4 to make sure we have all the Kerberos stuff. Choose whether we want nfs3 or 4 when we mount it. Either edit /etc/sysconfig/nfs:

Or use Yast:

Select nfs4 and set the domain for idmapd.conf

Runlevels. Setting the nfs client services to start at boot

OpenSUSE sometimes starts the gss daemon, so you either need to start it manually:
. . .or, perhaps better for now so we can see when it doesn't mount, open two more shells:
shell 1:
$rpc.gssd -fvvv
shell 2:
$rpc.idmapd -fvvv

Finally, root gets us ready for work:
$mount -t nfs4 hh3:/home /home -o sec=krb5
$mount -t nfs hh3:/home /home -o vers=3,sec=krb5

For speed and security we recommend automounting the nfs as described here.

Windows client
As local Admin, set as your only DNS.
The beautifully designed windows network settings dialogue
Set the date and time to match exactly that on the server. Add two registry entries to look like this:
DNSNameResolutionRequired 0
DomainCompatibilityMode 1
Joining the domain. This is quite scary.
Forgot to do a screenshot. This is on another client called SuSE-pc. Sorry.
Then, in true Microsoft style, reboot.

At the login screen, hit ctrl+alt+del (or right-shift+del if like here, you're on virtualbox). You'll see the offer to log onto the CACTUS domain. Accept the offer. Logon as Administrator.

Download the Microsoft remote tools here and choose to install anything that mentions AD. Warning, it takes ages. We've prepared howto's for how to join a domain and setup the remote tools for both XP and win7.

Then, Control panel >  Programs and Features > Turn windows features on or off > Remote Server Administration Tools > Administration Tools >  Choose AD DS and AD LDS Tools > OK
If you're the sort of user that likes clicking something on a menu, then continue by choosing  Administrative Tools from the program menu then select AD options. Otherwise at the bottom of start menu type run then click on the word 'run' which appears above where you typed 'run' beforehand, then type the self explanatory name of  dsa.msc in the window called 'run'. As you are now a windows user, I am also obliged to tell you to click on 'OK'after you have typed dsa.msc
Describing our new group
the whole proof
Checking profile and home folders for steve6
Our script has already done this for us. You can change it here if you wish. (Don't). Enter \\hh3\profiles\steve6 in the profile field at the top and map Z: to \\hh3\home\steve6 fields at the bottom. Log out and back in to CACTUS, this time as steve6. In explorer type Z:\ or \\hh3 in explorer. You'll see your Linux files. I'll stick this stuff in the s4user script later.

Check the primary group for steve6:
Setting the default group. Note the POSIX message.
steve6 on the Windows client
Setting up the dropbox share
As this is not crucial at the moment and for fear of being too lengthy, we documented setting up the dropbox share in this post instead of boring you here. acls turned out to be quite entertaining.

hh3:/home/steve # getent passwd steve6
hh3:/home/steve # getent group suseusers
hh3:/home/steve # wbinfo -i steve6
hh3:/tmp # id steve6
uid=3000015(steve6) gid=3000016(suseusers) groups=3000016(suseusers)


steve6@hh6:~> id

uid=3000015(steve6) gid=3000016(suseusers) groups=3000016(suseusers)

steve6@hh6:~> echo "Hola" > file

steve6@hh6:~> ls -l file

-rw-r--r-- 1 steve6 suseusers 5 Feb 9 13:52 file

steve6 on xfce
steve6 on KDE
Client and server
If you're not in a hurry, why not try cifs?
CLIENT: The call to the fileserver
In this case it was steve4@
SERVER: authentication cifs
Or, for CLI freaks:
$smbclient //hh3/home -U steve6
Enter password for steve6.

Testing the user and group scripts
Here is a new user steve8 being added to the suseusers group:

hh3:/tmp # s4user steve8 suseusers
Creating s4 posix user steve8
Pls enter pwd for steve8
New Password:
User 'steve8' created successfully
Modified 1 records with 0 failures
Added members to group suseusers
sleeping. . .
Modified 1 records with 0 failures
sleeping. . .
Modified 1 records with 0 failures
New user:  steve8 POSIX-ified as follows:
uid  3000033
gid  3000020
primaryGroupID  1118  :suseusers
getent passwd steve8
sid  S-1-5-21-443838659-2890314986-1722269781-1118
profilePath: \\hh3\profiles\steve8
homeDirectory: \\hh3\home\steve8
homeDrive: Z:

ldbmodify? rpc.gssd?

The ideal setup for casual home use. Perfect for gaming and writing brief e-mail messages.

Stuck? How do I do it on Ubuntu? Questions? More screenshots?
Drop a line and I'll do my best. There's also the samba mailing list.

7 comentarios:

  1. Hello, very nice howto but I had a problem running your s4user script, this was on Ubuntu 12.04beta (yes I know, but I am trying it out)
    The problem I got was:

    WARNING: Module [samba_dsdb] not found - do you need to set LDB_MODULES_PATH?
    Unable to load modules for /usr/local/samba/private/sam.ldb: (null)
    Failed to connect to /usr/local/samba/private/sam.ldb - (null)

    If anybody else gets this the fix is:

    export LDB_MODULES_PATH=/usr/local/samba/lib/ldb/

  2. Hi
    Do you have ...samba/bin in your path? On 11.10 I get:

    export LDB_MODULES_PATH=
    s4user lynn2 suseusers
    Creating s4 posix user lynn2
    Pls enter pwd for lynn2
    New Password:
    User 'lynn2' created successfully
    Modified 1 records with 0 failures
    Added members to group suseusers
    sleeping. . .
    Modified 1 records with 0 failures
    New user: lynn2 POSIX-ified
    uid 3000029
    gid 3000020
    primaryGroupID 1118
    getent passwd lynn2
    sid S-1-5-21-443838659-2890314986-1722269781-1118

  3. Thanks for the guide. I've used this twice in conjunction with the samba4 wiki.
    I suggest this tweak to nslcd and ldap.conf:
    set the search base thus:
    base cn=Users,dc=hh3,dc=site

    This will speed up logins, not so noticable on the DC but definately on the workstations using nslcd to hit the samba ldap.


  4. Thanks Jono. Yes, It I can confirm it works fine.

    Thanks for the tip.

  5. Great stuff - any chance of building k5start against x86_64 or is there source avail somewhere?

  6. You should probably add --use-rfc2307 to the provision options to allow "Services for UNIX" and then everything can be managed from Windows if desired

    Also... you don't mention any saslauthd configuration, or openldap configuration... on centos I had to make sure saslauthd was happy as well...

    great guide! saved me.

  7. also... xid doesn't exist for me in samba 4.0.0 - so the scripts need a little tweaking
